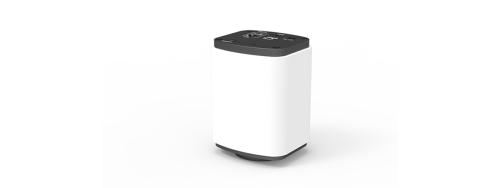

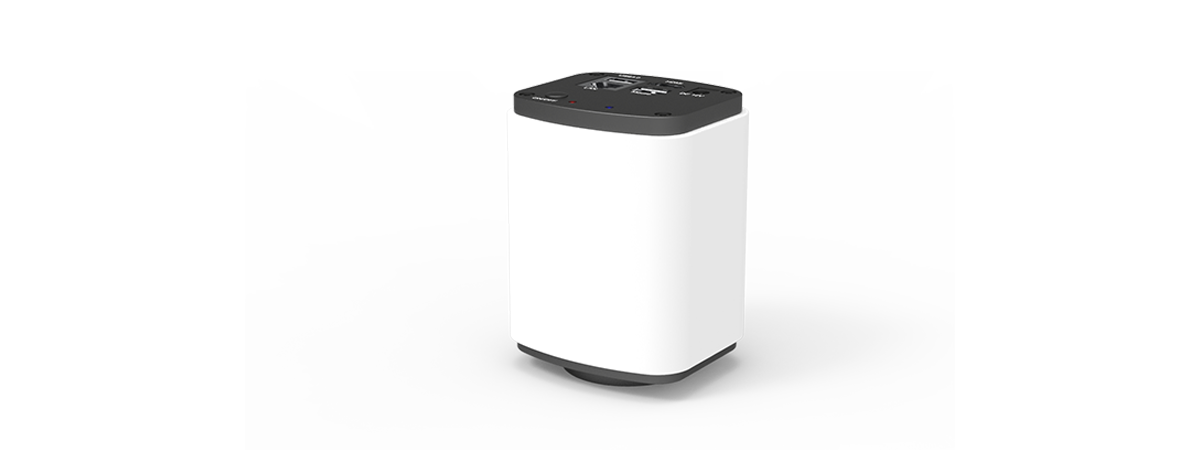

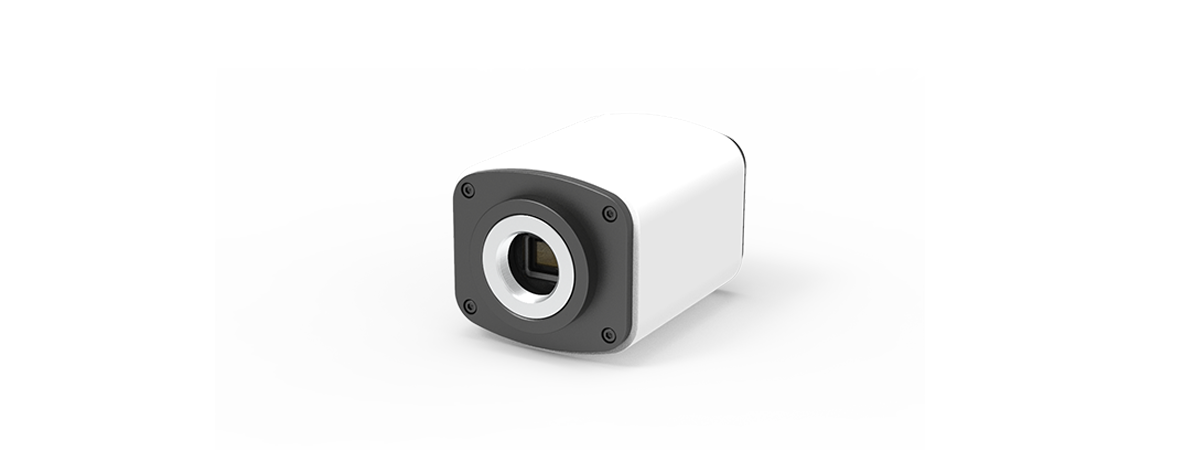

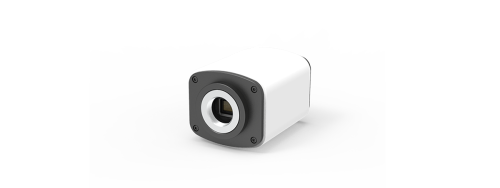

VCI-AHUG800RC-Pro
The ideal camera pixel refers to the pixel size that is just big enough to resolve the optical resolution of a microscope. But in order to fully performs the optical efficiency of microscope, the real adopted camera pixel size should be smaller than ideal. The smaller pixel size, the higher resolution. Shown as below diagram: take the incident wavelength of 450nm for example, the adopted camera pixel size should be smaller than 2.8um pixel size which corresponds to 4 multiples of minimum objective lens. Under same 2/3 FOV, the actual resolution of a 1080P (1920 ×1080) camera is only equal to 4.6um(=8.8mm/1920), and it barely meet the demands of 40X and 60X objective lens,while 4K (3640×2160) is about 2.3um(=8.8mm/3640), totally meeting the demands of all objective lens and making the optical lens work at its best efficiency. No matter it is equipped with 4K or 1080P monitor, it can get higher resolution results.
Much Stronger 4K Image Signal Processor:
The upgrade of 4K resolution requires the camera to process a larger amount of data. Generally, it is not easy to perfectly reveal 4K images, but the Viewsecctv Camera Products 4K ISP performs at a very good professional level. It can not only accurately determine the exposure intensity of complex light scenes but also accurately restore difficult colours such as blue, purple, and pink, while maintaining a high speed of 30 frames per second.
Embedded-type Functionality Upgrade:
Based on the previous generation of TrueChrome Metrics embedded software, three utility functions are added to VCI-AHUG800RC-Pro to continuously optimize your shortcut operation experience.
USB 3.0 + Mosaic V2 Professional Analysis Software:
The USB 3.0 channel on VCI-AHUG800RC-Pro can achieve high-speed transmission at 25 fps at 4K full resolution. It contains the same perfect colour reproduction and complete parameter control functions as USB 3.0 cameras from Viewsecctv Camera Products. Meanwhile, it is loaded with Viewsecctv Camera Products Mosaic V2 professional image analysis software, which includes shooting, processing, measurement, report, and self-defined function modules. This allows users to have an efficient and stable operational experience when performing advanced functions like “Live Stitching” and “Live EDF.”
Live Stitching:
When moving the loading platform, the software automatically completes the image stitching, which can be accurately and quickly done under different magnifications and any angle!
Live EDF:
When turning the focus ring to shoot different depth-of-field (DOF) points, the software automatically generates large DOF images, with the feature points of different focal planes clearly displayed on the same plane!
Remote Control, Separate Human and Experimental Devices:
The VCI-AHUG800RC-Pro can meet the needs of many medical laboratories or clean workshops that often need to separate operators from operating areas to avoid unnecessary contact or contamination. By connecting an observer with the VCI-AHUG800RC-Pro and a computer with the Mosaic V2 software to the Internet, users can remotely control all features of the camera. The VCI-AHUG800RC-Pro can still deliver high speeds of up to 30 FPS at 4K full resolution, even remotely, without affecting the experience.
Live Interaction, Share Videos with Multiple People in Real Time:
The rapid development of internet technology makes communication more convenient and efficient. The need for huge resources in a multimedia interactive platform can now be easily managed with one camera. The VCI-AHUG800RC-Pro camera supports network standard transmission protocol and can be connected with third-party live platforms like Ding Talk, Kwai, and Tik Tok to set up internet conferences, teaching platforms, and interact with images with multiple people in real time.

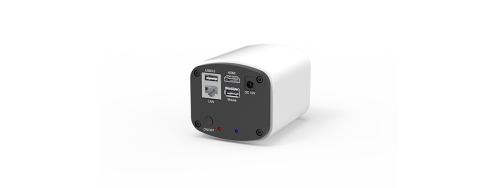

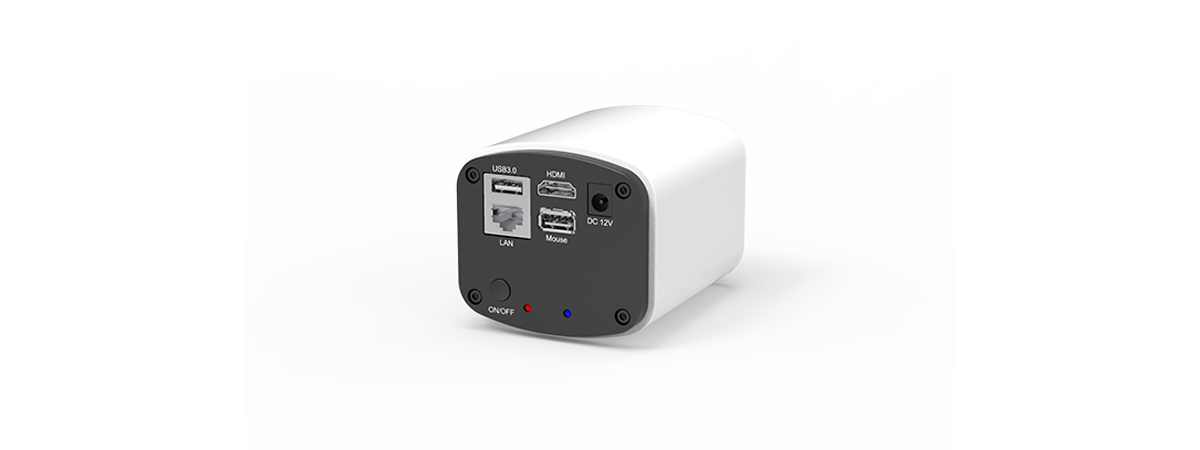

Remark:
- USB 3.0: Can perform voice interaction with the help of computer audio functions.
- LAN: No simultaneous voice interaction supported since there is no audio interface on the camera.
