AZURE-10545UV

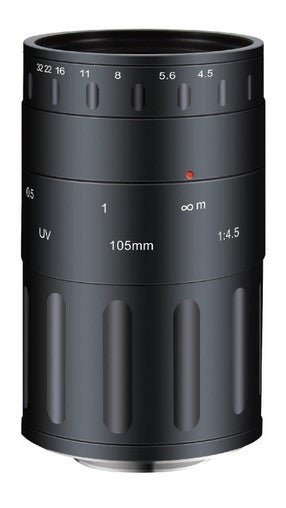

AZURE Photonics AZURE-10545UV 105mm F4.5 Manual Iris F-Mount (Nikon Mount) Lens, 45mm Image Circle, Ultraviolet Type (200-1000nm)
Specifications
- Image Format: 45 mm
- Resolution: 50 lp/mm
- Focal Length: 105 mm
- Back Focus: 50.97 mm
- F/ No: 4.5
- Iris Type: Manual
- Distortion: < 0.3%
- Lens Effective Diameter (Front): Φ32.00 mm
- Lens Effective Diameter (Back): Φ34.50 mm
- Mount: F
- Suitable Distance: 0.27~0.5~100 m
- Optimum Working Distance: 0.7 m

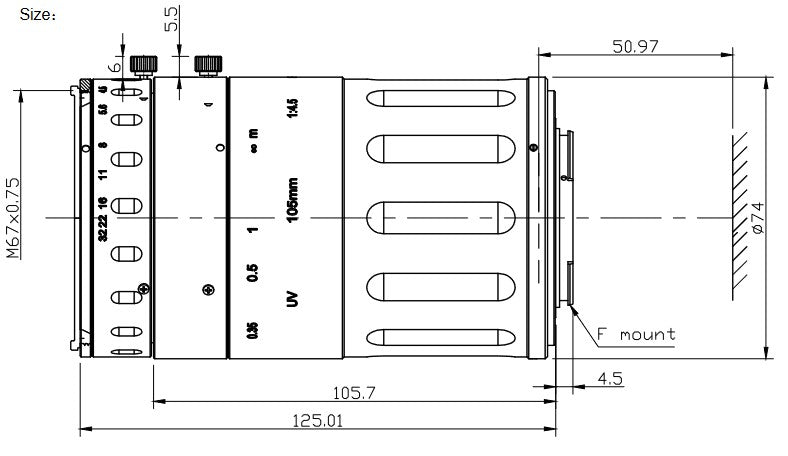

- Dimension: Φ74 x 125.01 mm
- Operating Temperature: -20~+60°C
- Filter Thread: M67 x 0.75
