AZURE-2528UV

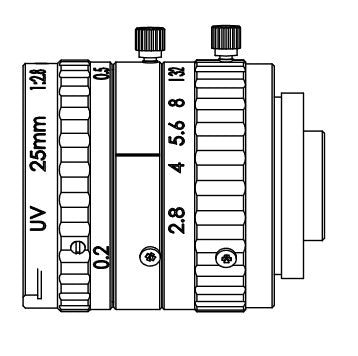

AZURE Photonics AZURE-2528UV 2/3″ 25mm F2.8 Manual Iris C-Mount Lens, Ultraviolet Type (200-1000nm)
Specifications
- Resolution: 100 lp/mm (2MP)
- Format: 2/3”
- Mount: C
- Focal Length: 25 mm
- F/No: F2.8~F32
- Back Focus: 12.45 mm
- Iris Type: Manual
- Angle of View:
- 2/3″ Format: 24.81° × 15.1° × 20°
- 1/2″ Format: 18.18° × 10.97° × 14.59°
- 1/3″ Format: 13.69° × 8.24° × 10.97°
- 1/4″ Format: 9.15° × 5.5° × 7.32°
- Distortion: < -0.06%
- Working Distance: 0.2 m~∞
- Design Wavelength: 200~1000 nm
- Filter Thread: M30.5 × 0.5
- Dimension: ￠34.5 × 34.39 mm
- Weight: 68.2 g
