AZURE-5030UV

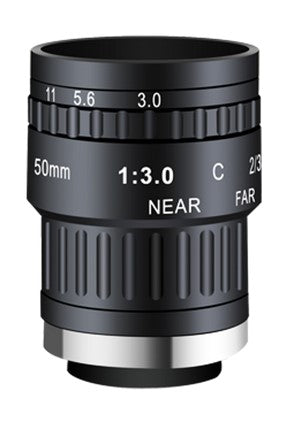

AZURE Photonics AZURE-5030UV 2/3″ 50mm F3.0 Manual Iris C-Mount Lens, Ultraviolet Type (200-1000nm)
Specifications
- Resolution: 100 lp/mm (2MP)
- Format: 2/3”
- Mount: C
- Focal Length: 50 mm
- F/No: F3.0~F32
- Back Focus: 26.55 mm
- Iris Type: Manual
- Angle of View:
- 2/3″ Format: 12.55° × 7.55° × 10.06°
- 1/2″ Format: 9.15° × 5.5° × 7.32°
- 1/3″ Format: 6.87° × 4.12° × 5.5°
- 1/4″ Format: 4.58° × 2.75° × 3.67°
- Distortion: < 0.1%
- Working Distance: 0.3 m~∞
- Design Wavelength: 200~1000 nm
- Filter Thread: M34 × 0.5
- Dimension: ￠59 × 81 mm
- Weight: 110 g
