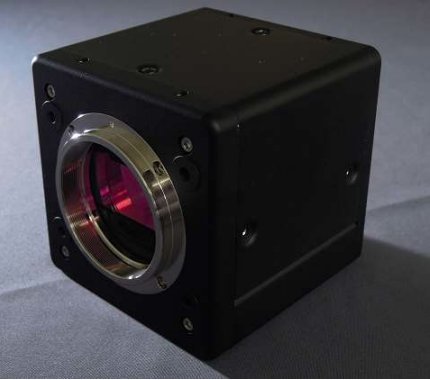

BVC6200LM 4 Sensors Line Scan Camera
BVC6200LM is a 4 sensor prism spectroscopic color line scan camera using newly developed prism to cover both RGB and SWIR wavelength with M52 mount.
Features & Benefits:
- New designed prism for 4 line scan sensors
- 4 different wavelengths(400nm～1680nm) of filters bonding as customisation is possible.
- CMOS sensors — 4096pixels, 7μm square pixel x 3
InGaAs sensor – 1024pixels, 12.5μm square pixel x 1 - Compact size, Light weight
- Pixel clock 80MHz, Line rate 18,034 Line/s
(Line rate 32,679 Line/s when PixelRemap is ON) - Variable shutter speed setting for Electric shutter (9.52µs～100ms by 1µs step)
- Image out — Camera Link medium configuration 8bit x 4 R/G/B/SWIR
- Gain level setting -3dB～+12dB
- Internal/ External trigger
- Various compensation functions are installed (see back page)
- 3 operation modes (No Shutter mode, Shutter select mode, Pulse width trigger)
- Camera Link, Baud rate 115200bps (GigE: development scheduled)
- Field update (Remote update) function
- Original camera control tool is bundled
Specifications:

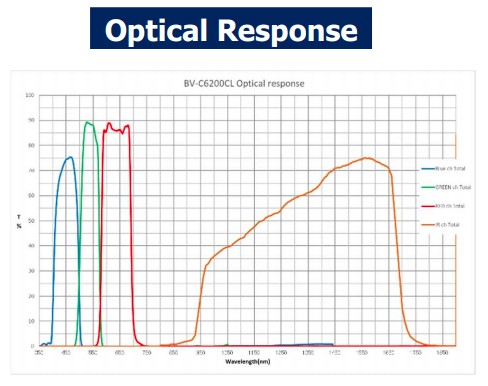

- Optical Structure: 4 sensors prism (400nm~1680nm)
- Image Sensor:
- CMOS line sensor 4096 pixels, 7μm square
- InGaAs line sensor 1024 pixels, 12.5µm square
- Effective Capture Length: R/G/B 28.672mm, SWIR 12.8mm (FOV matching mode, PixelRemap mode)
- Synchronization: Internal/External trigger
- Pixel Clock Frequency: 80MHz
- Line Rate/Line Frequency:
- 55.45μs (Internal trigger)
- 18.03KHz (PixelRemap OFF)
- 32.67KHz (PixelRemap ON)
- Image Output:
- PixelRemap ON: R/G/B 1828 pixels out, SWIR 1828 pixels out
- PixelRemap OFF: R/G/B 4096 pixels out, SWIR 1024 pixels out
- Camera Link, Medium configuration, 8/10/12 bit ×4, Dual base 8bit x 4
- Standard Illuminance: 3500Lx (corresponds to 7800K)
- S/N:
- RGB: more than 48dB (8 bit)
- SWIR: 58dB (when Level is 0)
- Line Rate (Variable): 55.45μs ～ 100ms (by 12.5ns step)
- Electric Shutter (Variable): 9.52μs ～ 100ms (by 1μs step)
- Gain:
- R/G/B/SWIR -3dB ～ +12dB
- R/G/B/SWIR 0LSB ～ 31LSB
- Black Level: Camera Link LVDS (CC1)
- Trigger Input:
- No Shutter mode (Internal/External trigger)
- Shutter Select mode (Internal/External trigger)
- Pulse Width Control (External trigger)
- Compensation: PRNU, DSNU, Flat/Color shading compensation, Lens aberration compensation (ON/OFF)
- Communication Interface: Camera Link EIA644, 115200bps
- Lens Mount: M52 / (Option) F mount
- Input Voltage/Current Consumption: DC 12V～24V, Std- TBD / Max- TBD
- Operation Temperature/Humidity: -5°C ～ +45°C / 20%～80% (No condensing)
- Storage Temperature/Humidity: -25°C ～ +60°C / 20%～80% (No condensing)

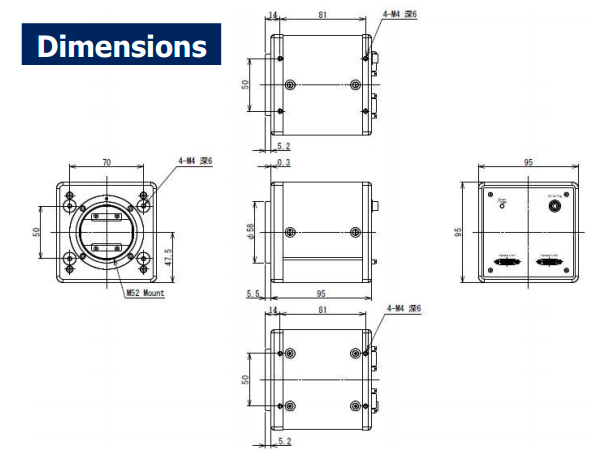

- Dimensions: (W x H x D) 95 x 95 x 95 mm
- Weight: 840g
