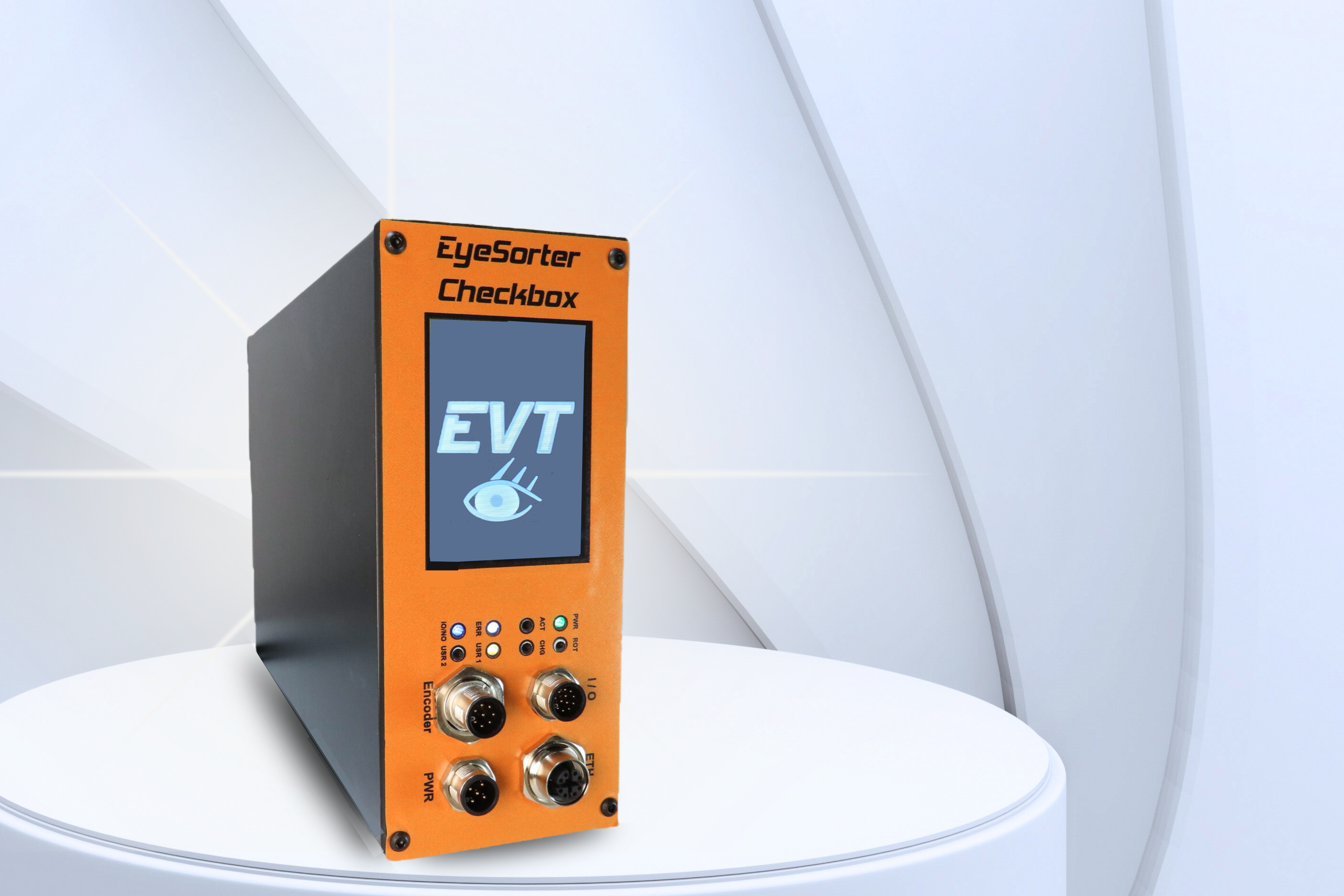

EyeSorter Checkbox

EyeSorter Checkbox – high-speed sorting with unmatched accuracy

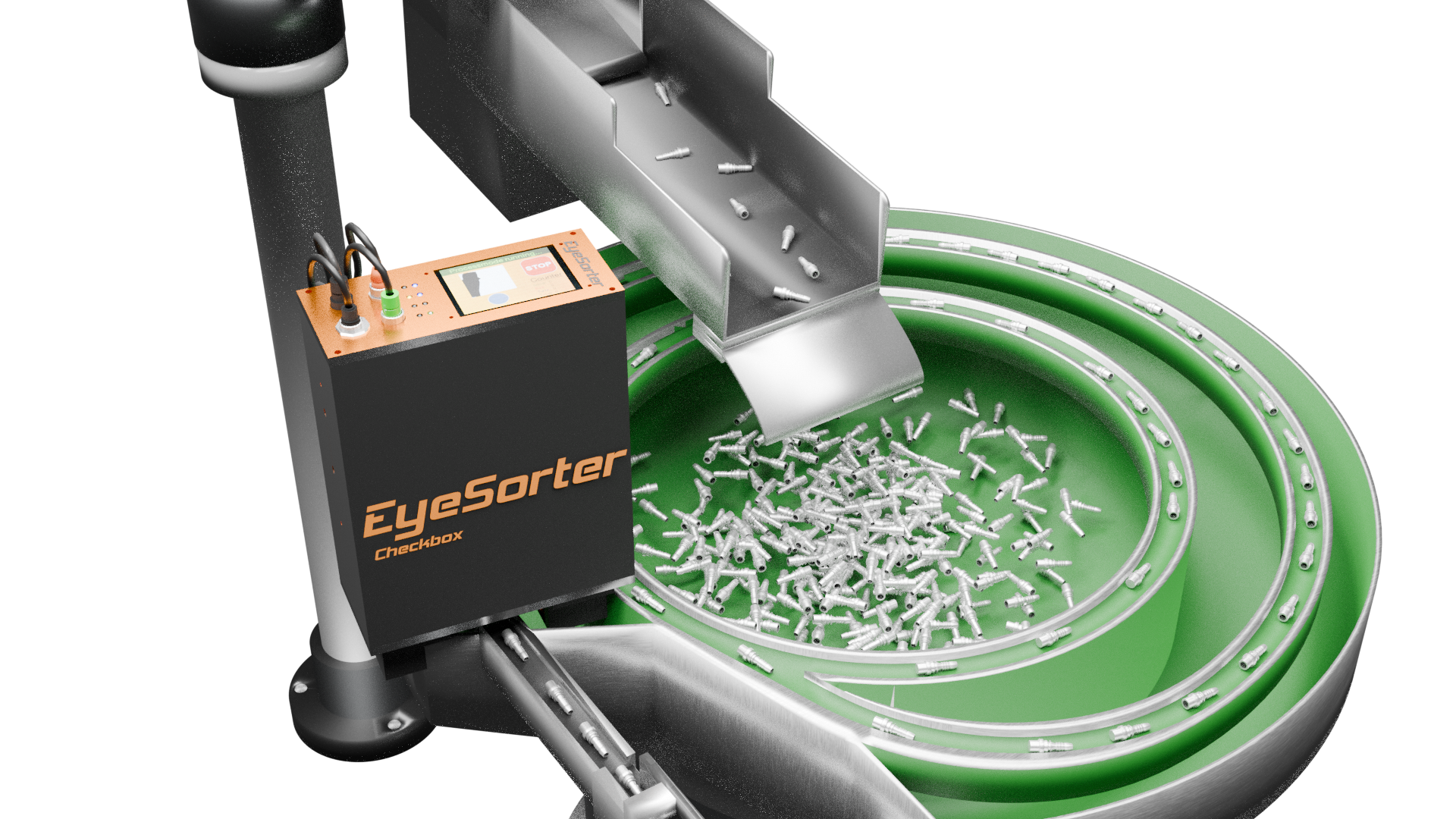

The EyeSorter Checkbox is an optical sorting unit designed for part recognition and orientation in bowl feeders. It can be used also in automatic assembly machines with the additional feature for measurement, quality assurance and more. An intelligent system with adaptive parts flow control and optical workpiece identification, it sorts small parts according to type, position orientation, quality and also according to piece count (piece count pre-selection).

Features & Benefits:

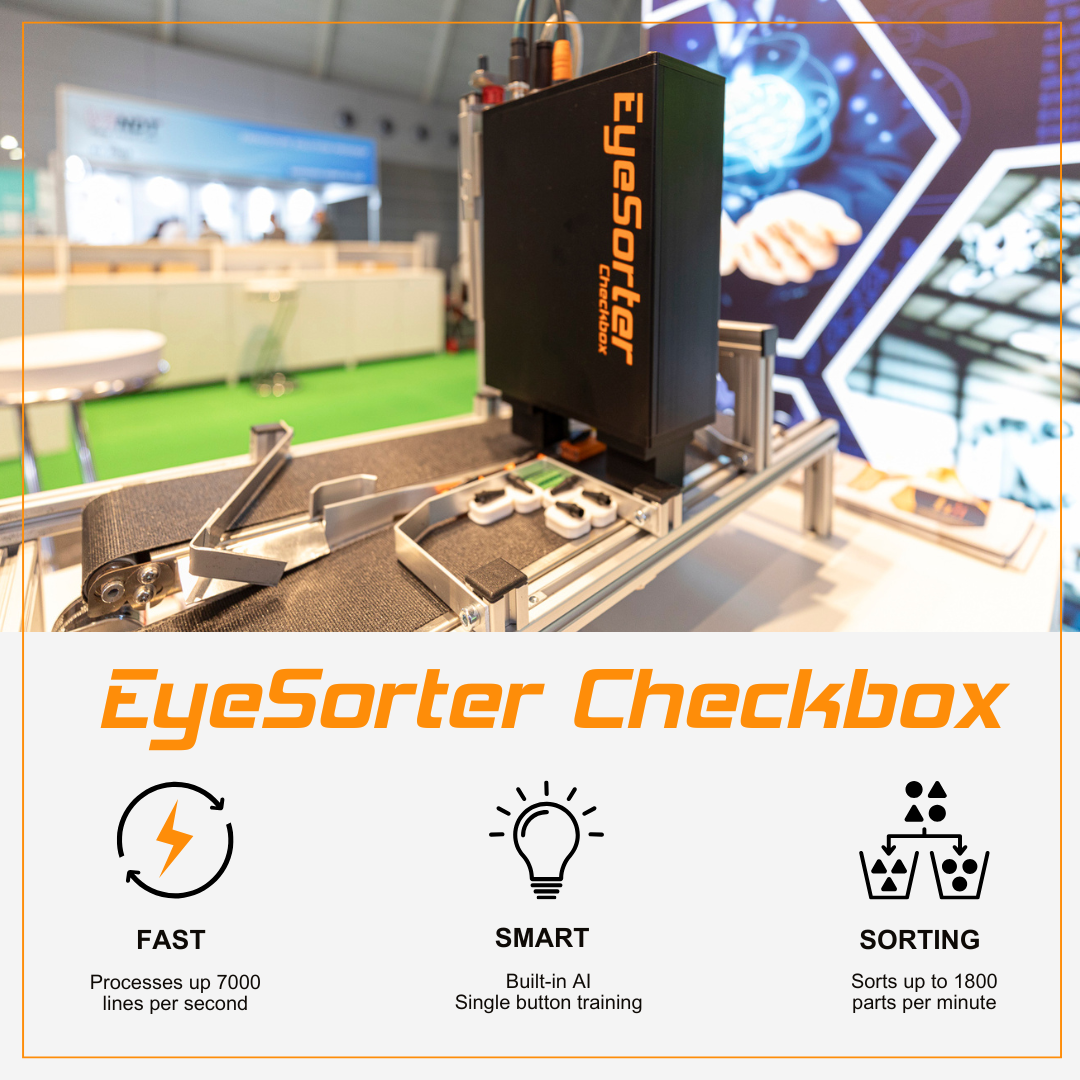

Detects parts in milliseconds and processes up to 1800 parts per minute
Equipped with an image capture speed of 7000 lines per second
Identifies part orientation and signals rotation or ejection of misaligned parts
Optional metrology features allow for customisable measurements
Ensures correct part spacing and ejects parts that are too close
Simple setup with one-time calibration
New components can be trained with a single button press
Web Interface Configuration – can be controlled anywhere and anytime from any web browser – even from your iPad!
New feature – Thread inspection: instantly inspect the external thread of components at the touch of a button
User-friendly touch interface without complex operating elements – quick teach-in and retrieval of stored components
Automatic component recognition & rotational position check
Supports metrology and 2D object recognition, allowing even complex tasks to be solved
Supports OPC/UA, Profinet and Modbus IP for seamless machine integration
Flying trigger for component tracking – enables precise sorting based on the position of the components
Memory for up to 999 components – stored components can be recalled at any time or expanded indefinitely through external storage
Flexible use & offline training – component images can be downloaded for external software analysis
Password-protected access – security options prevent unauthorised changes to the settings
