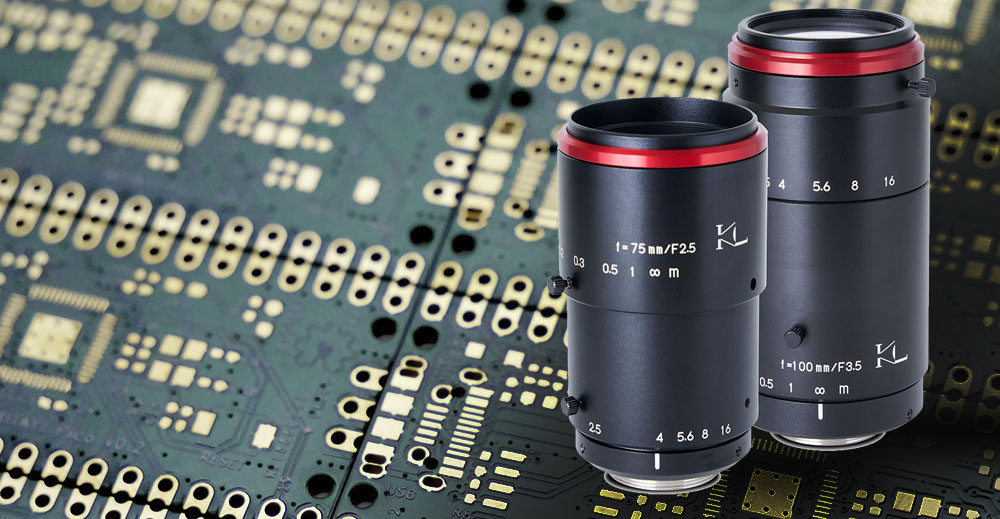

FC24M Series Macro Lenses

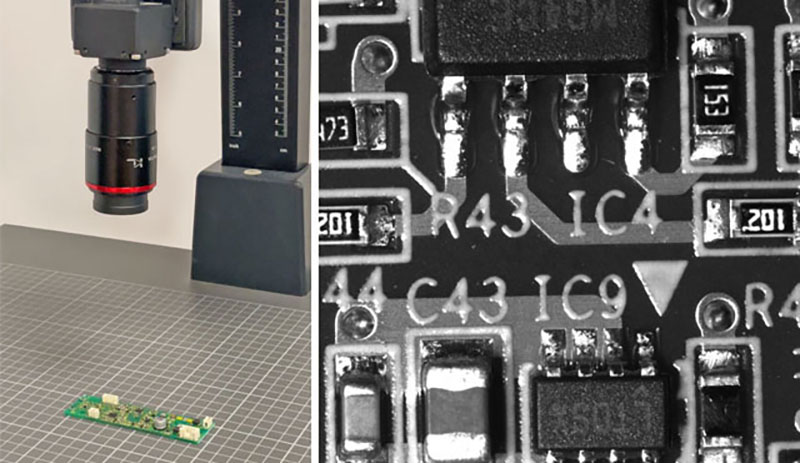

The 75mm and 100mm FC24M lenses feature a minimum object distance of 15cm, making them ideal for intricate macro applications such as the detailed inspection of small electronic components or medical imaging.
The FC24M series lenses are designed for use with 1.1-inch sensors, such as the Sony IMX183, IMX530/540, IMX531/541, and IMX253/304. They feature a large image size of Φ17.6mm and a floating mechanism system that ensures sharp images across the entire focus range. The lenses are also coated with a wide-band multi-coating that minimises flare and ghosting.
Features & Benefits:
- High optical performance – designed to provide sharp, clear images with minimal distortion
- Minimum object distance of 15cm allows for close-up inspection of even the smallest subject
- Durable construction and high-quality materials, designed to withstand the rigors of daily use
- Wide range of macro applications, including industrial inspection, medical imaging, and nature photography
Applications:
- Broadcast
- ITS/traffic control
- Machine vision
Specification & Models:

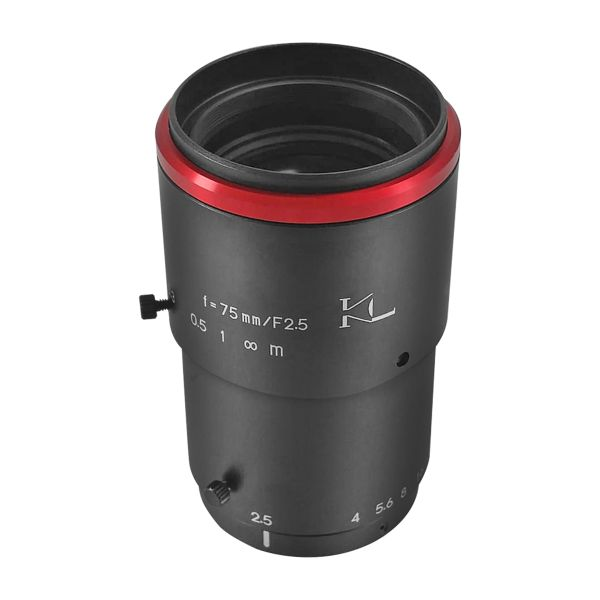

| Model | LM75FC24M 1.1″ 75mm 24MP C-Mount Lens | LM100FC24M 1.1″ 100mm 24MP C-Mount Lens |
|---|---|---|
| Aperture (F-stop) | 2.5 – 16 | 3.5 – 16 |
| Aperture (control) | Manual | Manual |
| Application field | Broadcast, ITS/traffic control, machine vision | Broadcast, ITS/traffic control, machine vision |
| Back focus in air (mm) | 20.8 | 21.1 |
| Control (focus) | Manual | Manual |
| Field of view at minimum working distance, horizontal (mm) | 21 | 19 |
| Field of view at minimum working distance, vertical (mm) | 16 | 14 |
| Filter size (mm) | M34 x 0.5 | M34 x 0.5 |
| Focus range (m) | 75 | 100 |
| Megapixel | 24 | 24 |
| Mount | C-mount | C-mount |
| Pixel size (µm) | 2.5 | 2.5 |
| Resolution, centre (lp/mm) | 200 | 200 |
| Resolution, margin (lp,mm) | 100 | 100 |
| Sensor size | 1.1″ | 1.1″ |
| Series | FC24M | FC24M |
| Size | Ø45 X 89 | Ø45 X 87.6 |
| TV distortion (%) | 0.16 | 0.26 |
| Temperature range (°C) | -10°C – +50°C | -10°C – +50°C |
| Type of lens | Fixed Focal Lens | Fixed Focal Lens |
| Wavelength range | Broad Band Coating (400nm – 1000nm) | Broad Band Coating (400nm – 1000nm) |
| Weight (g) | 225 | 260 |
