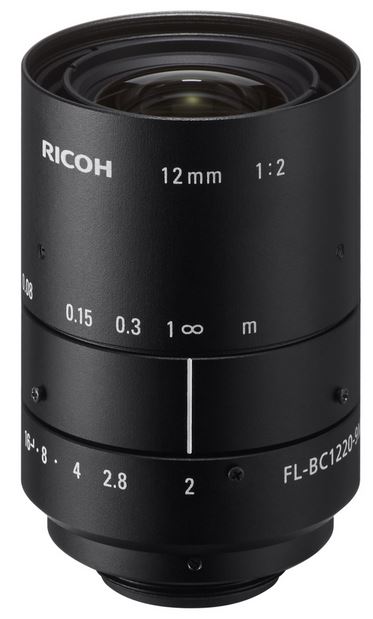

FL-BC1220-9M

Fixed focal length lens, high-resolution, compact 9 Megapixel lens, with locking screws, for C- and CS- Mount cameras.

High resolving power of 135 lp/mm from centre to corners of the image.

Mobile:(+86)1300 6699 017

Specification & Models:

Specification Details
Remarks Pixel Pitch: 3.69 µm
Format 1″ (1.1″)
Mount C
Focal Length 12.0 mm
Iris Range F2 – 16
Iris Type Manual
Max. Iris Aperture 1:2.0
Focus Control Manual
Minimum Object Distance 80 mm
Filter Size 40.5 x 0.5 mm
Dimensions Ø42 x 60.5 mm
Weight 156 g
Temperature Range -10°C to +50°C
Comment Back focal length: 14.5 mm
Horizontal Angle of View 1/3″ 22.7°
Horizontal Angle of View 1/2″ 30.0°
Horizontal Angle of View 2/3″ 40.6°
Horizontal Angle of View 1″ 57.0°
Resolution 9M
