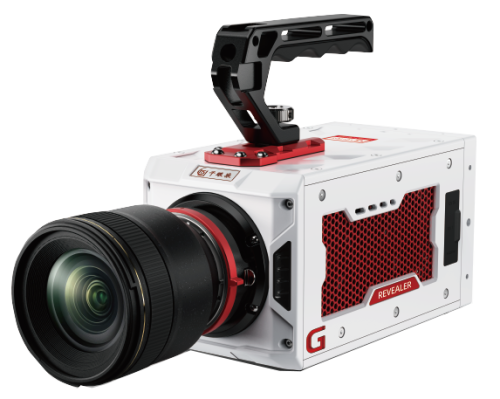

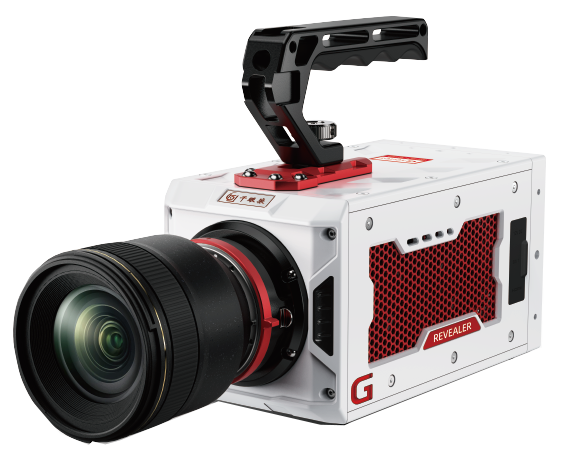

G-Pro Series High-Speed Camera
G820M_Pro / G820C_Pro
G520M_Pro / G520C_Pro
G2110M_Pro / G2110C_Pro
G-Pro Series – 4K Movie Grade Digital HD High Speed Camera
The G-Pro series uses a high-sensitivity full-frame 12BitCMOS sensor that provides ten million effective pixels and a wide dynamic range, restoring high-speed transient events while guaranteeing a sense of gradation and colour in high-definition images.
G-Pro series adopts self-developed super-large storage SSD, which supports up to 20TB, and adopts Flash array parallel control to optimize the data interface timing, so that the storage unit can give full play to the bandwidth performance, and continuously record transient events and wonderful shots.
A new generation of hardware architecture, with the configuration of rich housing interface design, easy to integrate platform, microscope, endoscope and other combinations of use, but also can support wireless control and battery-driven, so that the outdoor high-speed shooting becomes friendly and portable.
Features & Benefits:
- Movie quality
- Continuous recording capability
- Flexible and portable
Applications:
- Film and sports
- Welding
- Large field of view strain field measurement
- Microfluidics
Specification & Models:
| Model | G820M/C_Pro | G520M/C_Pro | G2110M/C_Pro |
|---|---|---|---|
| Sensor type | CMOS | CMOS | CMOS |
| Bit Depth | 8 /10 /12Bit optional | 8Bit | 8 /10 /12Bit optional |
| Maximum resolution | 4096 x 2048 | 2560 x 1920 | 5120 x 4096 |
| Minimum FPS | 2000fps | 2000fps | 1000fps |
| Maximum FPS | 28000fps | 20000fps | 27000fps |
| Electronic shutter | Global shutter | Global shutter | Global shutter |
| Maximum exposure | 1µs | 1µs | 1µs |
| Auto-exposure | Support | Support | Support |
