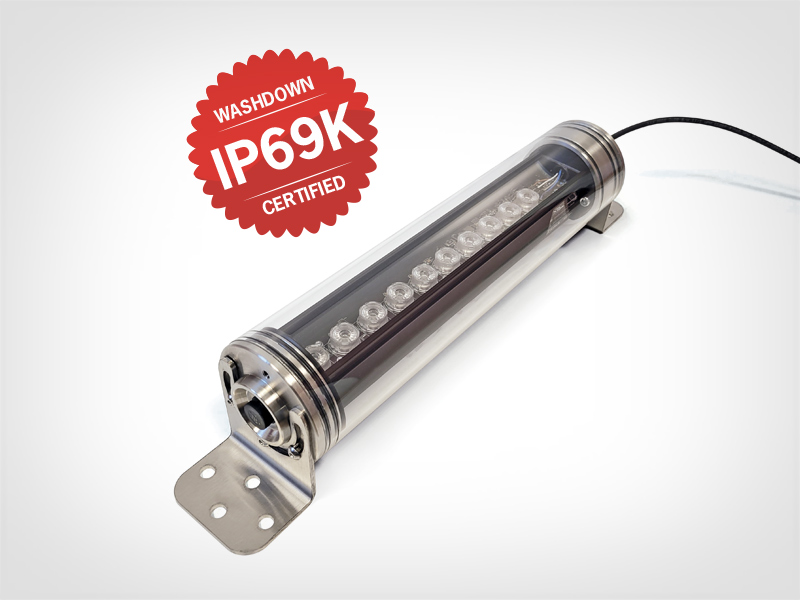

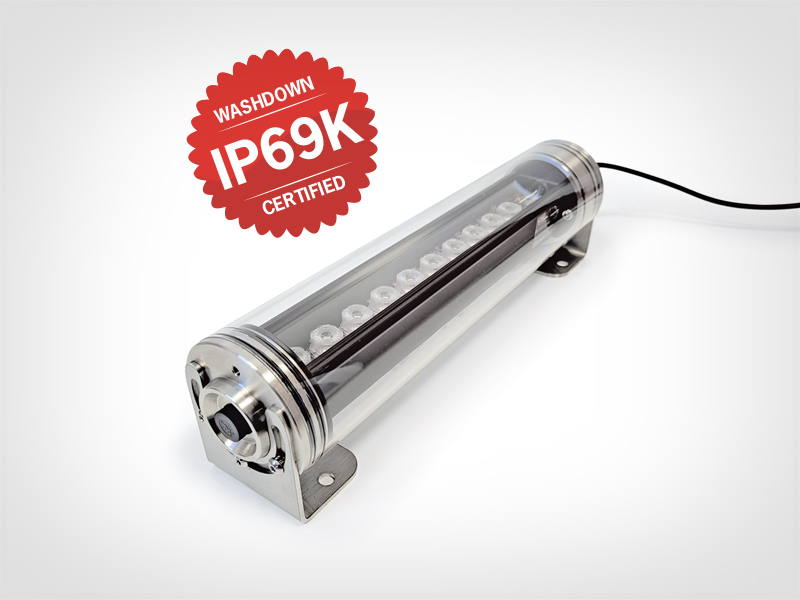

IP69K Washdown Barlights

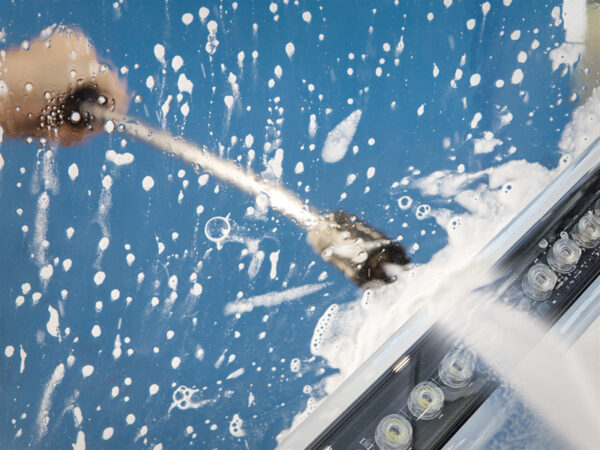

IP69K washdown barlights provide high brightness, uniform illumination in a reliable package designed to withstand the rigours of harsh chemical cleaning & de-contamination.
Our new Waterproof IP69K Washdown lights have some significant performance improvements over the older IP69K Food Bars:
- 40% higher power: giving you reduced exposure times and higher production rates, or smaller apertures with larger depth of fields [8,185 lux at 0.5m (125mm bar), 14,650 lux (1250mm bar)]
- 100 x faster rise & fall times [rise time now 15µs (was 1.5ms); fall time now 10 µs (was 1ms)]
- New Dimming function [100% – 35% (with 0-10V)], giving you more control of brightness
Features & Benefits:
- Smooth cylindrical surfaces for rapid cleaning
- Wide range of cleaning solvents
- Suitable for high humidity environments
- Wide ambient operating temperature range
- Longest and Brightest bars on the market! (Standard up to 1250mm)
- 6 colour options covering most applications
- Swivel mounting brackets for easy installation
- Simple, Plug & Light 24VDC operation
- Integrated current controller & single M12 connection
- Short lead-time
- 3 year warranty*
- Need an IK rated product? Get in touch!
* Warranty: 3 years (UV: 1 year).
Applications:
For the following machine vision applications:
- food
- beverage
- pharmaceutical
Specification & Models:
- Operating voltage: 24 VDC
- Supplied cable length: 5 meters
- Operating modes: Continuous and Strobe
- Trigger (strobe) mode: PNP & NPN
- Rise time / Fall time: 15 µs / 10 µs
- Dimming control: Yes, 100% – 35%
- Ambient temperature: -20°C to +60°C (-4°F to +140°F) – See Technical User Guide
- Ambient humidity: 80% max
- IP rating: IP69K (IEC 60529)
- Housing: 316L stainless steel / food grade PPMA

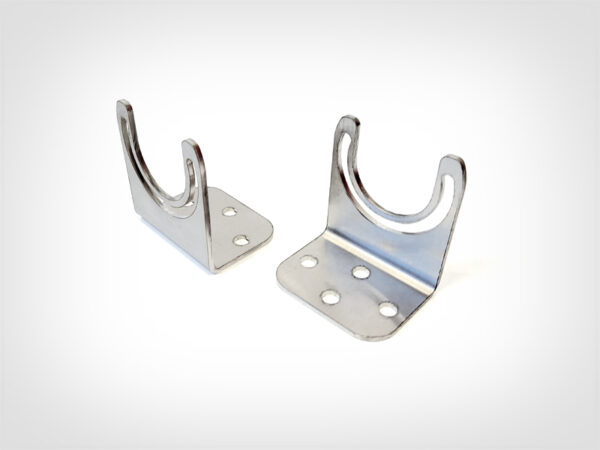

- L-Brackets (included): Design permits 360° rotation of light
- Warranty: 3 years (UV: 1 year)
