Features & Benefits:
- Operating temperature : -30 to +80℃.
- Total power : 43mW (Typ.) @ IF = 350mA
- Lead–free soldering compliant
- RoHS2 compliant
Specification & Models:
- Size (mm)L3.5xW3.5xH1.3
- Peak wavelength (nm)275
- Light output (mW)43
- Half intensity angle (deg.)120,120
- Continuous forward current (mA)350
- Forward voltage (V)5.8

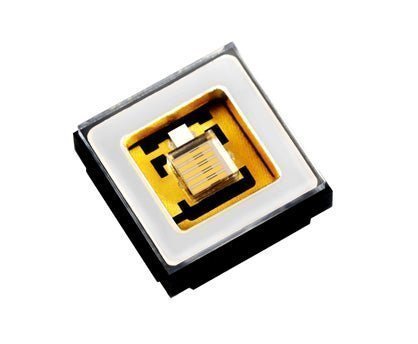

- Wide distribution angle, high power type Deep-UV LED (UVC)
- Peak wavelength 275nm
- Outer dimension 3.5 x 3.5 x 1.3mm( L x W x H )
