M106 Series CIS Module

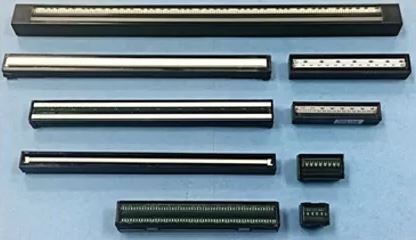

Our 200 dpi contact image sensors come in a wide variety of designs and sizes from 304 mm to as small as 12 mm scanning length. The M106 series of modules is based on our 8 dots per millimeter C106 silicon. The modules have from 1 to 3 video outputs these devices can be configured to meet your specific design needs.
The timing diagram indicates a device with a single video output. In the example the device can be fully scanned in 1,728 clock cycles with a single video output. SP or Start Pulse begins the scanout process.
The diagram indicates a device with a total of 2,436 pixels and two video outputs. This device has a minimum integration time of 1,216 clock cycles.
A wide variety of illumination techniques and spectrum are available on all of our devices. Custom illumination available upon request.
Features & Benefits:
- 8 dots per millimeter – 200 dpi
- 125 µm pixel center to center spacing
- High sensitivity
- Internal gain
- 5 V power supply
- Low power consumption
Specification & Models:
| Module Name | Sensor Length | LED | Typical Clock MHz | (µSec/line/color) |
|---|---|---|---|---|
| M106-A4R1 | 216 | Red | 4.0 | 500 |
| M106-A4G1 | 216 | Yel-Grn | 4.0 | 500 |
| M106-A4IR | 216 | IR | 4.0 | 500 |
| M106-A6R1 | 104 | Red | 3.0 | 350 |
| M106-A8R1 | 56 | Red | 1.0 | 1000 |
