Modular M-TBAR
Tiny modular bar light for confined spaces.

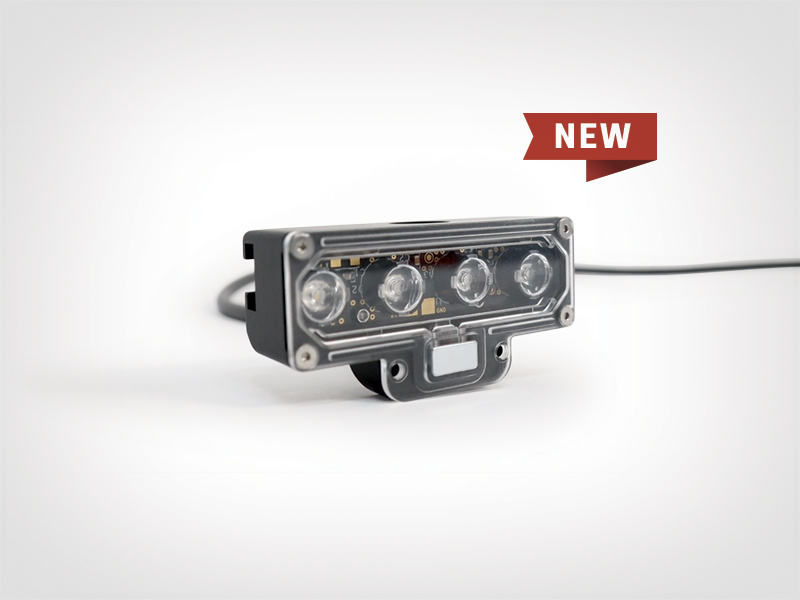

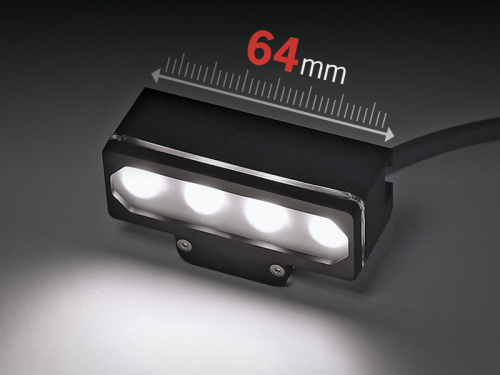

Miniature modular bar light with built-in flexibility. The M-TBAR is a compact, IP67-rated tiny LED bar light that allows users to change the beam angle with TPL Vision’s Angle Changers. Offering unparalleled flexibility, the M-TBAR provides a convenient way to expertly illuminate small-scale vision applications requiring a robust lighting solution. Application areas include code reading, quality control, component verification, label- and packaging inspection, robotics and more.
- Available in white (4800K), red (630nm), IR (850nm), green (525nm), blue (470nm)
- Lightweight and robust IP67-rated design – perfect for end of arm tooling and other robotics applications (light unit: 60g, box: 72g)
- Chain together for a longer bar with no change to LED spacing

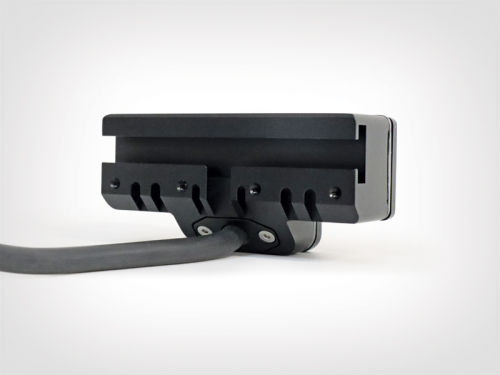

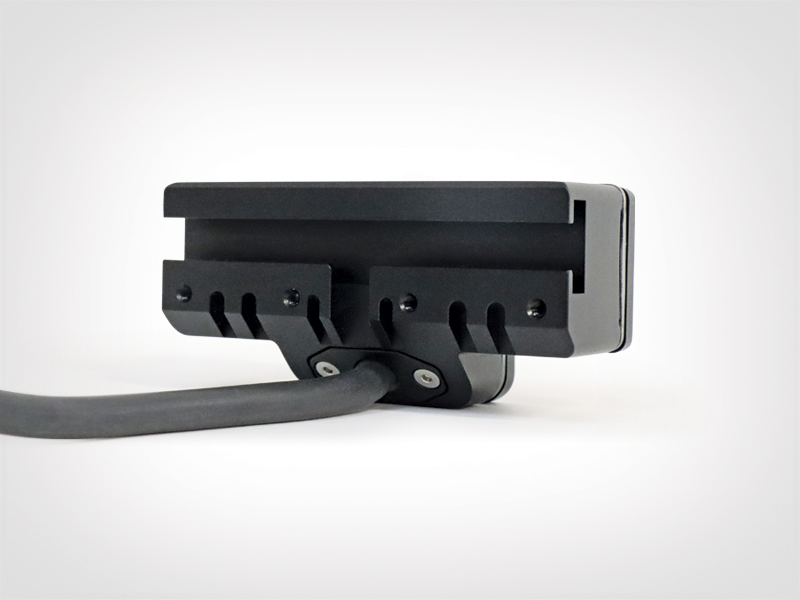

- Easy T-SLOT mounting (M4 nuts included)

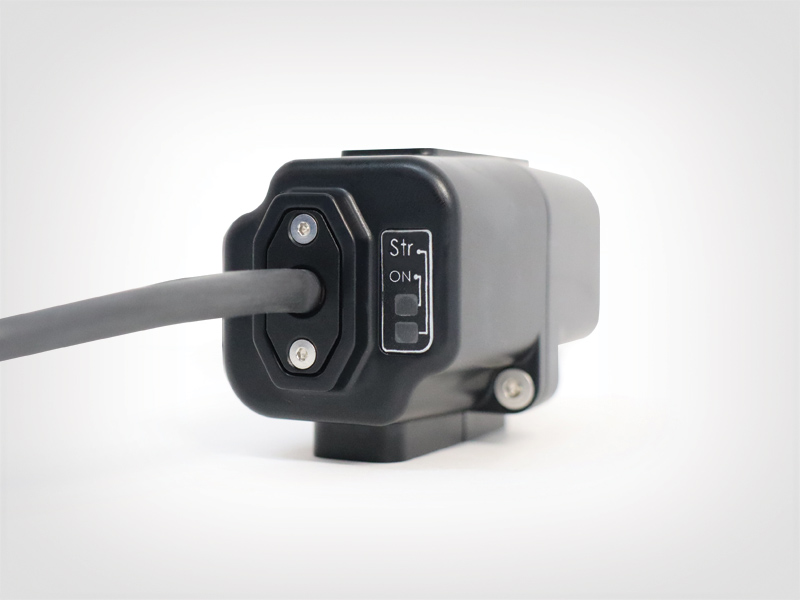

- Standard M12 A-coded connector
- Flexible cable length between the light and power supply – up to 10m
- Dimming on continuous and strobe OverDrive mode

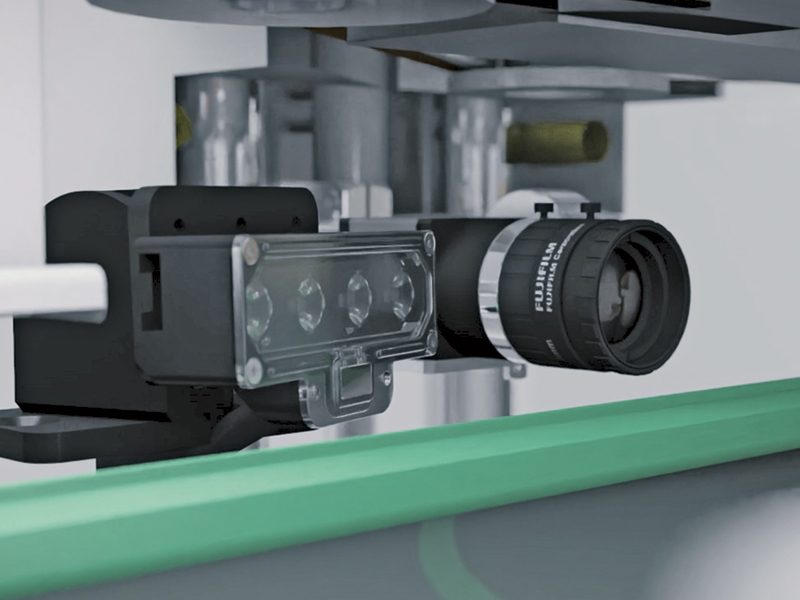

- Perfect for use with most machine vision and code reading cameras on the market
Features & Benefits:
- Small bar light suited to machine vision applications in confined spaces
- Compact but powerful, designed for easy integration
- Auto-strobe OverDrive illumination with robust packaging & integrated current control
Applications:

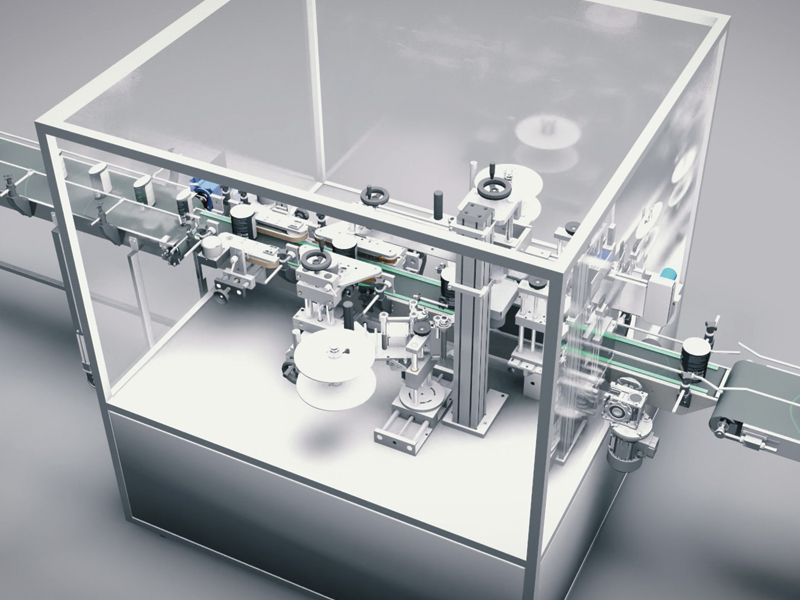

The Modular M-TBAR comes with strobe and continuous working in one product. The built-in strobe OverDrive feature makes it perfect for the automotive industry, logistics, electronics manufacturing, and other robotics, quality control and machine vision inspection applications including:
- code reading
- label inspection
- part identification and validation
- placement inspection
- traceability
