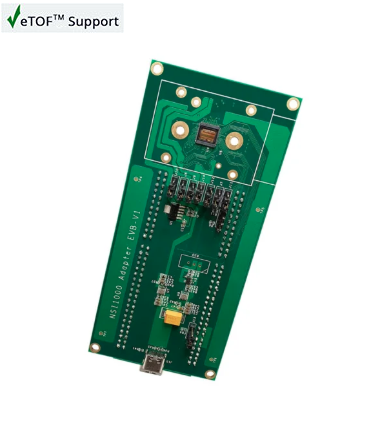

NSI1000EVBA adaptor PCB with Morph-IC-II
Integrated with Newsight’s eTOFTM (enhanced-time-of-flight technology), supported by a windows-based demo tool, to enable the NSI1000 configuration and operation. The demo tool allows the readout to be presented on a PC screen.
Features & Benefits:
- USB connection to PC via the Morph-IC board, drivers included.
- Morph-IC FPGA for NSI1000 configuration.
- Lenses holder mount included.
- Optional NSI1000 socket.
- Two optional power supplies: Morph-IC 3.3v power. USB C-type connector for optional 5v power in.
- On board power generated: 3.3v, 1.8v, -1/-0.1v. Using
- This board includes the NSI1000 chip and minimal peripheral passive components.
- The board was designed to be connected to the Morph-IC-II equipped with Cyclone-II FPGA which allows full operation of the NSI1000 chip.
- The board has 2 optional chip assembly methods: SMD soldered Socket The connection of the adaptor PCB to the Morph-IC-II is as followed: Connect adaptor PCB J1&J4 to Morph-IC J1&J4, 24 pin headers. Connect adaptor PCB J2&J3 to Morph-IC J2&J3, 40 pin headers.
