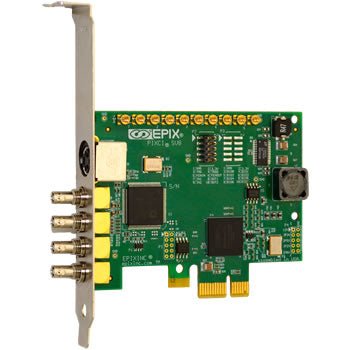

PIXCI SV8
Frame grabber for color and monochrome analog video: S-Video, NTSC, PAL, RS-170, CCIR
Features & Benefits:
- Install in any PCI Express slot (x1, x4, x8, x16).
- Four HD-BNC multiplexed inputs and one S-Video input.
- Uncompressed and lossless image capture.
- 8 or 10 bits per color value or pixel intensity.
- Enable or disable automatic gain control.
- Controls for gain, hue, brightness, saturation, sharpness, and contrast.
- 64-bit addressing for extended capture to computer memory.
- Stream video to disk for days.
- Live display through host computer’s graphics card.
- Available with standard or low profile bracket.
- RoHS compliant.
- Windows & Linux, 32 & 64–bit.
Applications:
- Multiple Source Capture
- Motion Analysis
- Microscopy
- Medical Imaging
- Robotics
- Laser Beam Analysis
- Multimedia
Specification & Models:
| Category | Details |
|---|---|
| Video Connections | One S-Video input, Four HD-BNC inputs, Six optional video inputs. |
| Trigger and I/O Header | Trigger in and out, Frame Enable in and out, Dual GPIO in and out, Eight optional ins or outs. |
| Bus | PCI Express x1 or wider. |
| Power Requirements | 12 V @ 70 mA, 3.3 V @ 390 mA, Total 2.127 Watts. |
| Dimensions | 3.45 inches long by 2.713 inches high (8.67 cm long by 6.89 cm high). |
| Operating Temperature | 0 to 70 degrees C. |
| EPIX® Software Support | Supported by XCAP-Lite (no charge with board purchase), XCAP-Ltd, XCAP-Std, XCLIB, and XCLIBIPL. Compatible with 32-bit & 64-bit Windows 10, 8, 7, Vista, XP, 2000, LINUX, and 32-bit DOS. Also TWAIN and Image-Pro Compatible. |
NTSC, RS-170, S-Video
- Image capture at 720 by 480 pixels or smaller area of interest.
- Capture at 30 interlaced frames or 60 discrete fields per second.
PAL, CCIR, S-Video
- Image capture at 768 by 576 pixels or smaller area of interest.
- Capture at 25 interlaced frames or 50 discrete fields per second.
