PVM-1001-N -950V 10NS OEM Pulse Generator Module
The PVM-1001 can achieve zero to -950 V in less than 10 ns (Rise Time). This adjustable pulsed voltage source is capable of providing pulse widths from 55 ns to 10,000 ns with a standard frequency range up to 1 MHz. The PVM-1001 can also provide a 5 MHz burst. The module is designed for a 50 ohm resistive load.
The output pulse width and frequency are controlled by an external trigger source. The PVM-1001-N requires an external negative high voltage supply. Two models are available, one for positive and another for negative output.

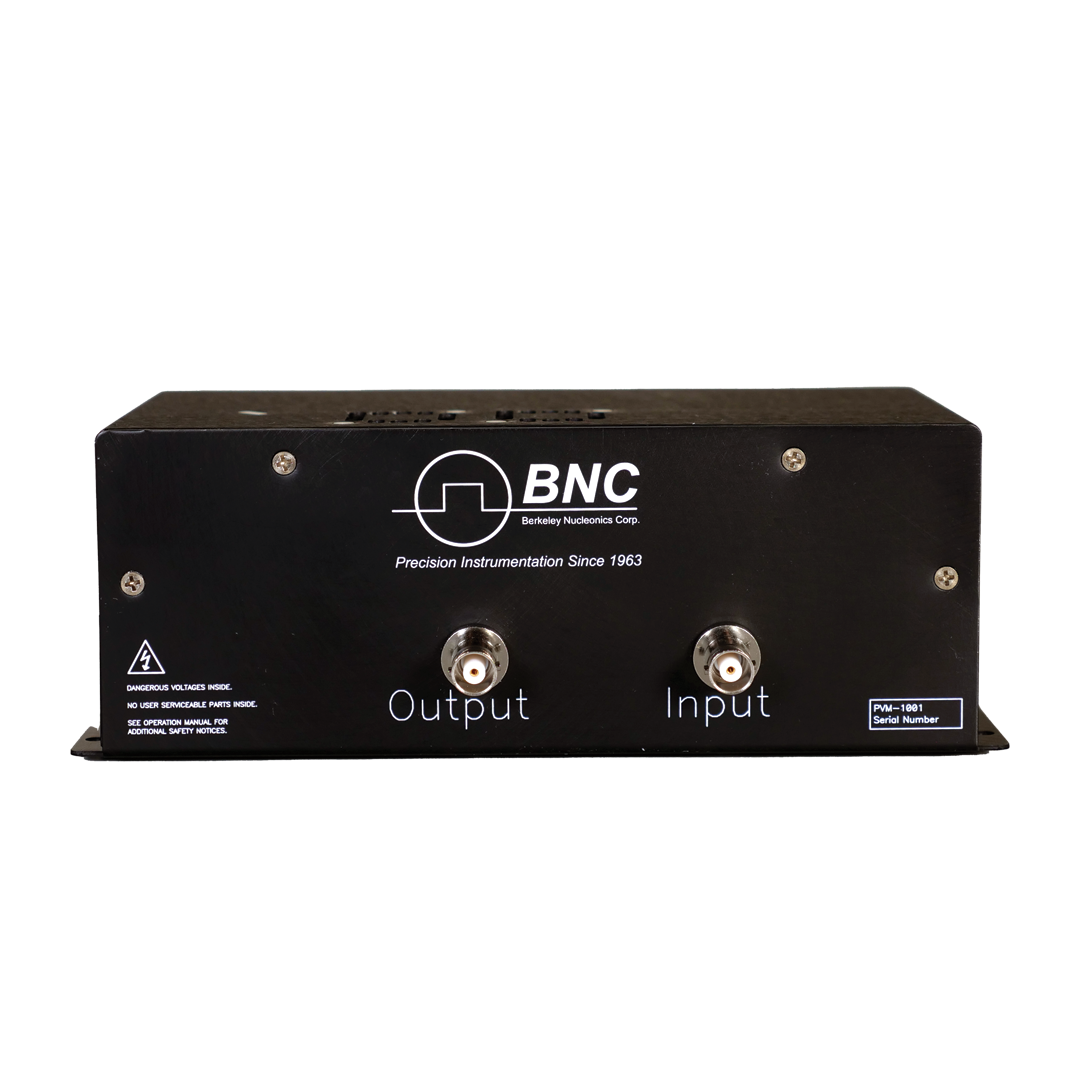

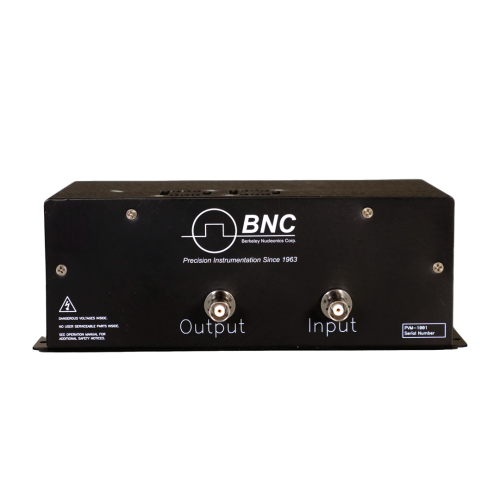

The rear panel of the PVM-1001 has connectors for the high voltage input and pulsed high voltage output. The front panel has an SMB connector for triggering the instrument.
Features
- Output Voltage Range: 0 V to -950 V
- Frequency Range: ≤ 1 MHz
- Burst Mode: ≤ 5 MHz
- Trigger Pulse Width: 55 ns ≤ Pulse Width ≤ 10,000 ns
- Rise Time: ≤ 8 ns @ 200 V to 950 V
- Positive or Negative polarity modules available
- Maximum Output Power: 208 W
- Simple to set up and use
Applications
Typical applications are instrument calibration, component testing, beam steering and PMT and MCP gating.
Specifications:
- Max Voltage Amplitude: 950V
- Maximum Frequency (MHz): ≤ 1 MHz (≤ 5 MHz Burst)
- Rise/Fall Time: 9ns
- Pulse Engine (Trigger): External
- Pulse Polarity: Negative (-)
- Remote Control: N/A
- Form Factor: Module
- Dimensions (in): 14x14x9
- Weight (lbs): 4.5
What’s in the Box:
- Product: PVM-1001-N
- Accessory Kit
- Operating Manual
- AC/DC Plug
- AC/DC Wall Mount
