SV035B

The SV035B camera features a very small size and NTSC or PAL analog video output over RG-179 coax. The SV035B uses a high performance On-Semi MT9V135 image sensor with a 640H by 480V pixel array to generate images at 30 fps 720H by 480V (NTSC), or 25 fps 720H by 576V (PAL).

A rolling shutter provides integration from 16 microseconds to 33 milliseconds (NTSC) or to 40 milliseconds (PAL).

Five to twelve volt DC power and I2C control signals for the camera are sent over a twisted pair cable to the camera via a rear Molex connector.

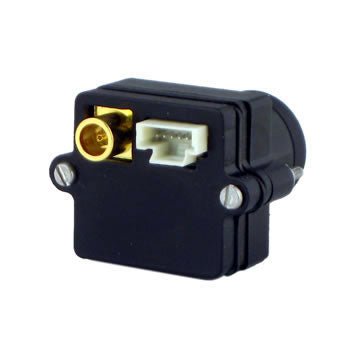

The SV035B uses a plastic front case for light weight and an aluminum back cover. The case is 0.80 inches long (not including the M12 lens), by 1.05 inches wide and 0.80 inches high (20.31mm L x 26.62mm W x 20.36mm H). Two 1.6 mm screws may be used for mounting the camera. An aluminum front case is in development.

The SV035B was developed as a compact camera for use with a PIXCI® SV7 frame grabber or other video equipment. Other versions of the SV035B can be created for OEM imaging requirements. Contact ALRAD more details.

Features & Benefits:

640 × 480
30 FPS
NTSC/PAL
8 or 10 bit
On-Semi MT9V135
Miniature Camera Head

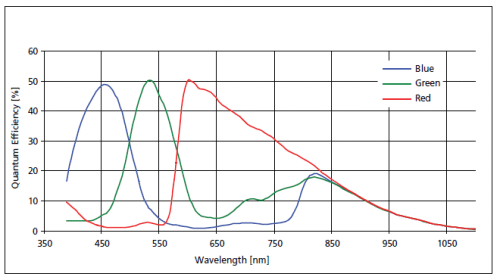

Specification & Models:

Optical Format	Active Image Size	Active Pixels	NTSC output	PAL output	Pixel Size	Color Filter Array	Shutter Type	Maximum Data Rate	Master Clock	Frame Rate (VGA 640H x 480V)	Integration Time	ADC resolution	Responsivity	Pixel Dynamic Range	SNRMAX	Supply Voltage	Power Consumption	Operating Temperature	Camera Dimensions
1/4-inch (4:3)	3.63mm(H) x 2.78mm(V) 4.57mm Diagonal	640H x 480V	720H x 486V	720H x 576V	5.6µm x 5.6µm	RGB paired Bayer Pattern	Electronic Rolling Shutter (ERS)	13.5 Megapixels / second	27 MHz	30 fps at 27 MHz (NTSC) 25 fps at 27 MHz (PAL)	16 µsec – 33ms (NTSC) 16 µsec – 40ms (PAL)	10-bit, on-chip	5 Volts/Lux-sec (550nm)	70dB	39dB	+5 to +12 Volts	320 mW	−30°C to +70°C	0.80″L x 1.05″W x 0.80″H 20.31mm L x 26.62mm W x 20.36mm H
