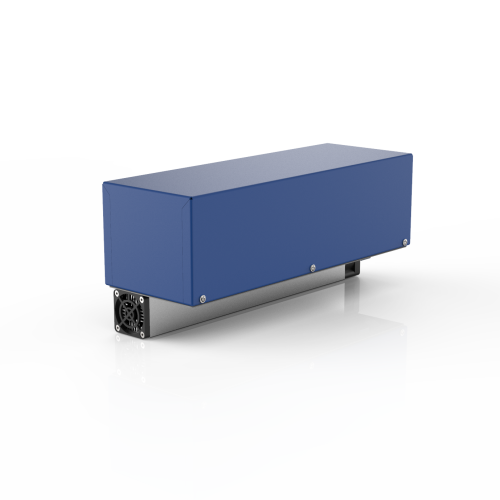

ZLP1 Laser Projector
ZLP1 is a cost-effective entry to laser projection. It is the smallest laser projector in the Z-LASER ZLP family.
ZLP1 is directed to 2D and 3D applications like pick-and-place, logistics, and workstations. Enlarge and optimize your production or workflow by this easy to use laser projection system. ZLP1 is eye-safe (laser class 2M) and covers working fields from 1.0m x 1.0m up to 3.5m x 3.5m. Possible working distances range from 1.0m to 3.0m.
We offer our own software ZLP-Suite, which has an intuitive software interface with many customizable options and as a result customers can adapt the settings according to their specific application. Furthermore, ZLP-Suite can be upgraded with additional software modules. Thanks to its numerous connectivity options the laser projector can be operated through various software interfaces such as C++, C#, Python or even with Microsoft Excel and Microsoft PowerPoint.
Specification & Models:
| Specification | Value |
|---|---|
| Output Power | 5 mW |

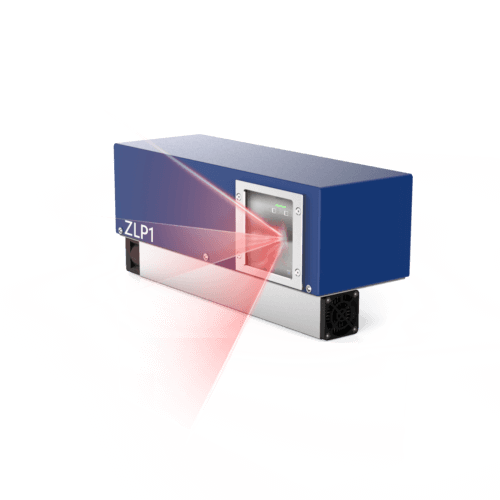

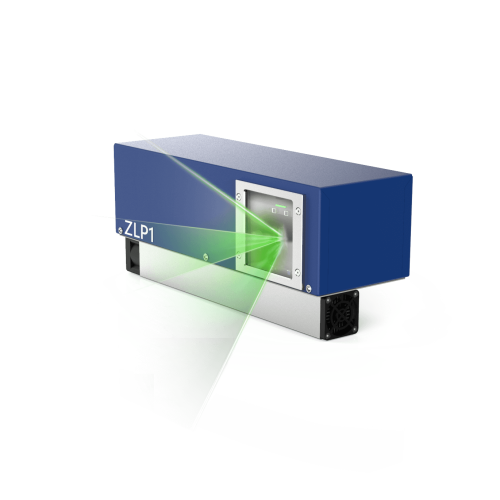

| Wavelength | 520 nm, 638 nm |
| Projection | 2D, 3D, CAD |
| Beam Angle | 60° x 60° |

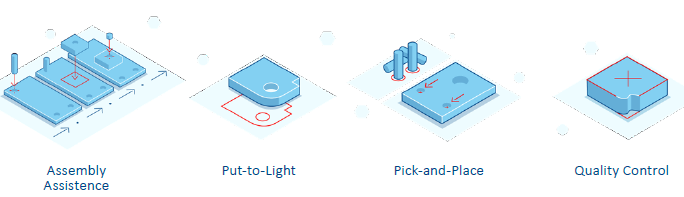

| Application | Assembling, Mounting/set-up |
| Technology | Diode Laser |
| Supply Voltage | 24 VDC |
| Laser Class | 2M |
