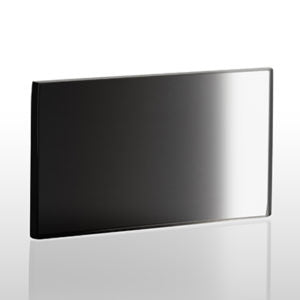

Linear Variable Neutral Transmission Filters (LVNT)
The Linear Variable Neutral Transmission (UV-VIS-IR) filters are designed to attenuate light as a function of transmission instead of density. These LVNT filters are much more sensitive to position at the lower transmission values than are linear density filters.
Custom sizes and densities are available upon request.
Specification & Models:
| Part Number | Substrate Material | Length | Width | Optical Density |
|---|---|---|---|---|
| R05701-xx | BK-7 | 50mm | 25mm | Specify |
| R05703-xx | BK-7 | 75mm | 25mm | Specify |
| R05705-xx | BK-7 | 100mm | 25mm | Specify |
| R05707-xx | BK-7 | 125mm | 25mm | Specify |
| R05709-xx | BK-7 | 150mm | 25mm | Specify |
| R05741-xx | ZnSe | 50mm | 25mm | Specify |
| R05743-xx | ZnSe | 75mm | 25mm | Specify |
| R05745-xx | ZnSe | 100mm | 25mm | Specify |
| R05747-xx | ZnSe | 125mm | 25mm | Specify |
| R05749-xx | ZnSe | 150mm | 25mm | Specify |
| R05721-xx | Fused Silica | 50mm | 25mm | Specify |
| R05723-xx | Fused Silica | 75mm | 25mm | Specify |
| R05725-xx | Fused Silica | 100mm | 25mm | Specify |
| R05727-xx | Fused Silica | 125mm | 25mm | Specify |
| R05729-xx | Fused Silica | 150mm | 25mm | Specify |
Specifications:
- Coating Types: Metallic
- Width: 25mm
- Length: 50mm – 150mm
- Tolerance: ± 5% Absolute
- Substrate Materials: BK-7, Fused Silica & ZnSe
- Transmission Range: 100% – 10%, 1%
- Wavelength Calibration: BK-7: 510nm, F.S: 510nm, ZnSe: 2.5µm
- Wavelength Range: BK-7: 375nm – 2500nm, F.S: 200nm – 2500nm, ZnSe: 2.0µm – 5.0µm
- Anti-Reflection Coating: Available
- Parallelism: < 3 Arc Minutes
- TWE: < 2 Waves per 25mm
